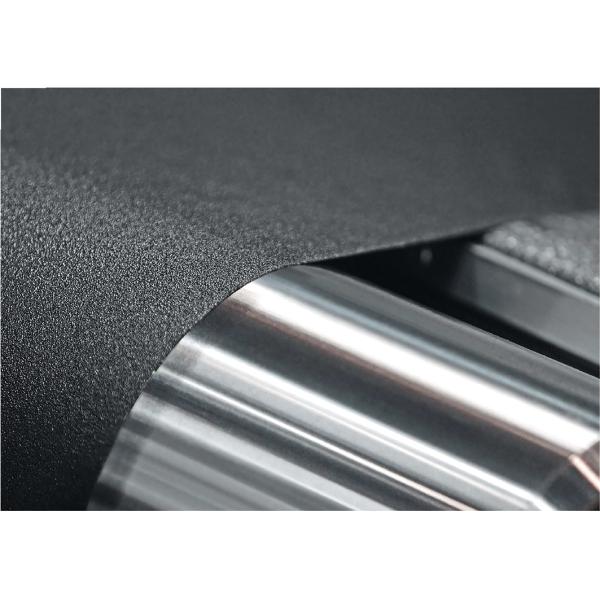

Custom Premium Silicon Carbide Wide Belt Sanding Belts For MDF / Resin Bonded With Types Of Joints
Quick Detail:
WEEM R1128 anti-static, sharp silicon carbide, resin over resin; waterproof polyester wide belts are specifically developed to maximize life and surface finishes on very wide panels and boards.
They feature exceptional dimensional stability. It is stocked jumbo size: width 64” (1600mm).
Description:
WEEM R1128 wide belts are using the same material of R1128 segmented belt. As we chose the right backing to sustain cross-direction strength for exceptional dimensional stability request. We careful chose YY weight polyester with anti-static treatment for backing. This is a waterproof cloth backing provided both stiffness strength and tensile strength, with treatment for oversized dimensional width stability. Anti-static treatment made on backing to delay or prevent loading problem. It is made for heavy duty stock removal and sanding.
Only premium silicon carbide is selected. Silicon carbide is a very hard and crystal structure produces a fine straight edged grind lines. A closed coat product has a higher number of abrasive cutting points per square inch and results in higher stock removal rate and longer time before the abrasive wears out. Normally results in a better finish.
WEEM R11128 belt is custom make to your ordered. A strong bi-direction tape splice is used. Joint of WEEM R1128 Wide belt offer 4 types of joints
Tap on gain line joint:
as default.
Tap on gain zizag joint:
Tap on butt line joint:
Tap on butt zizag joint:
Applications:
Woodworking /MDF/HDF/OSD/Partial board/Chip board/Glass/metal
Specifications:
| Backing: | Yy weight polyester; waterproof cloth backing |
| Treatments: | Anti-static |
| Coated: | Close coated |
| Bond: | Resin over resin |
| Grain: | Silicon Carbide |
| Grit: | P40~P220 |
| Width: | 1000mm/39” ~ 1600mm/63” |
| Length: | Customer specific |
Competitive Advantage:
It is made for wide belt sander, such as: Steinemann, Imeas, Sofuma etc. it offer great performance and durable with heavy duty grinding and sanding needs.
Tag:
Cloth belt, wide belt, polyester sanding belt, silicon carbide,Types of joints.
